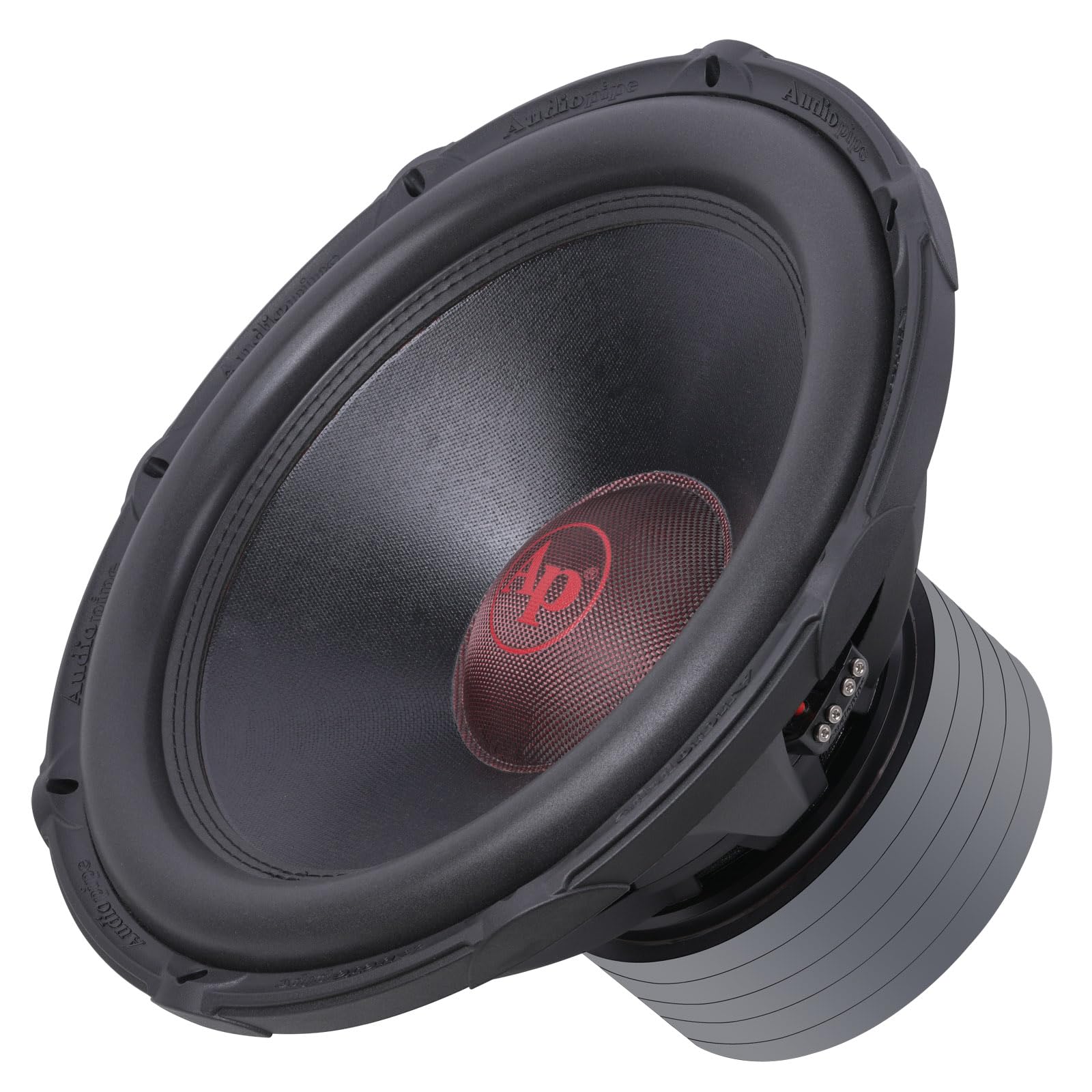

18" 1900 watts RMS Five Stack Dual 4 Ohms Subwoofer Audiopipe TXX-BDC-V-18

• Five Stack Magnets: The five-stack magnet configuration enhances the subwoofer's performance, delivering exceptional power handling and efficiency.
• Wide Frequency Response: Operating between 25-1500Hz, this subwoofer ensures a rich sound across a broad range of frequencies, making it suitable for various music genres.
• Robust Voice Coil: The 4-inch voice coil with four layers provides improved heat dissipation and durability, allowing the subwoofer to withstand intense performance sessions.
• High Excursion Capability: With a maximum excursion of 2 inches (50 mm), this subwoofer can produce deep bass without distortion, ensuring a powerful audio experience.
• Unmatched Power Handling: With a robust 1900 watts RMS and peak power handling of 3800 watts, this subwoofer delivers deep, powerful bass for an immersive audio experience.

18" 1900 watts RMS Five Stack Dual 4 Ohms Subwoofer Audiopipe TXX-BDC-V-18

This listing includes

• (1) 18" 1900 watts RMS Five Stack Dual 4 Ohms Subwoofer

Unleash the power of sound with the Audiopipe 18-Inch Subwoofer, designed to elevate your audio experience to new heights. This beast boasts an impressive 1900 watts RMS and can handle up to 3800 watts peak, making it a perfect choice for those who crave deep, resonant bass.

Specifications

• Frequency Response (Hz): 25-1500Hz


• Max Power: 3800 Watts


• Voice Coil Diameter: 4"/99.2mm


• Voice Coil Height: 2"/51mm


• Voice Coil Layers: 4


• Magnetic Gap Height: 0.55"/14mm


• Linear Excursion, pk-pk (Xmax): 0.72/18.5mm


• Maximum Excursion, pk-pk: 2"/50mm


• Magnet Weight: 425oz/12kg


• Woofer Displacement: 6L/0.21 cubic ft.


• Net Weight: 55.1lbs/25kg


• Fs (Hz): 35


• Re (Ohms): 2x3.6


• Le (mH): 5.5


• Qts: 0.39


• Qes: 0.45


• Qms: 2.0


• CMS (um/N): 46


• Vas (L): 66


• Mms (g): 592


• Mmd (g): 568


• No (%): 0.6


• SPL (dB-1W/1M): 90


• BL (T*M): 45


• Sd (cm): 1119


• Krm (nm): 46


• Erm: 0.75


• Kxm (mH): 159


• Exm: 0.68

Subwoofer Dimensions

• Length: 19"


• Width: 19"


• Height: 11.5"


• Weight: 54.20 lb.


• Mounting Depth: 10"


• Overall Depth: 11.5"


• Cutout Diameter: 17"

Package Dimension

• Length: 20.5"


• Width:  20.5"


• Height: 13"


• Weight: 63.45 lbs
