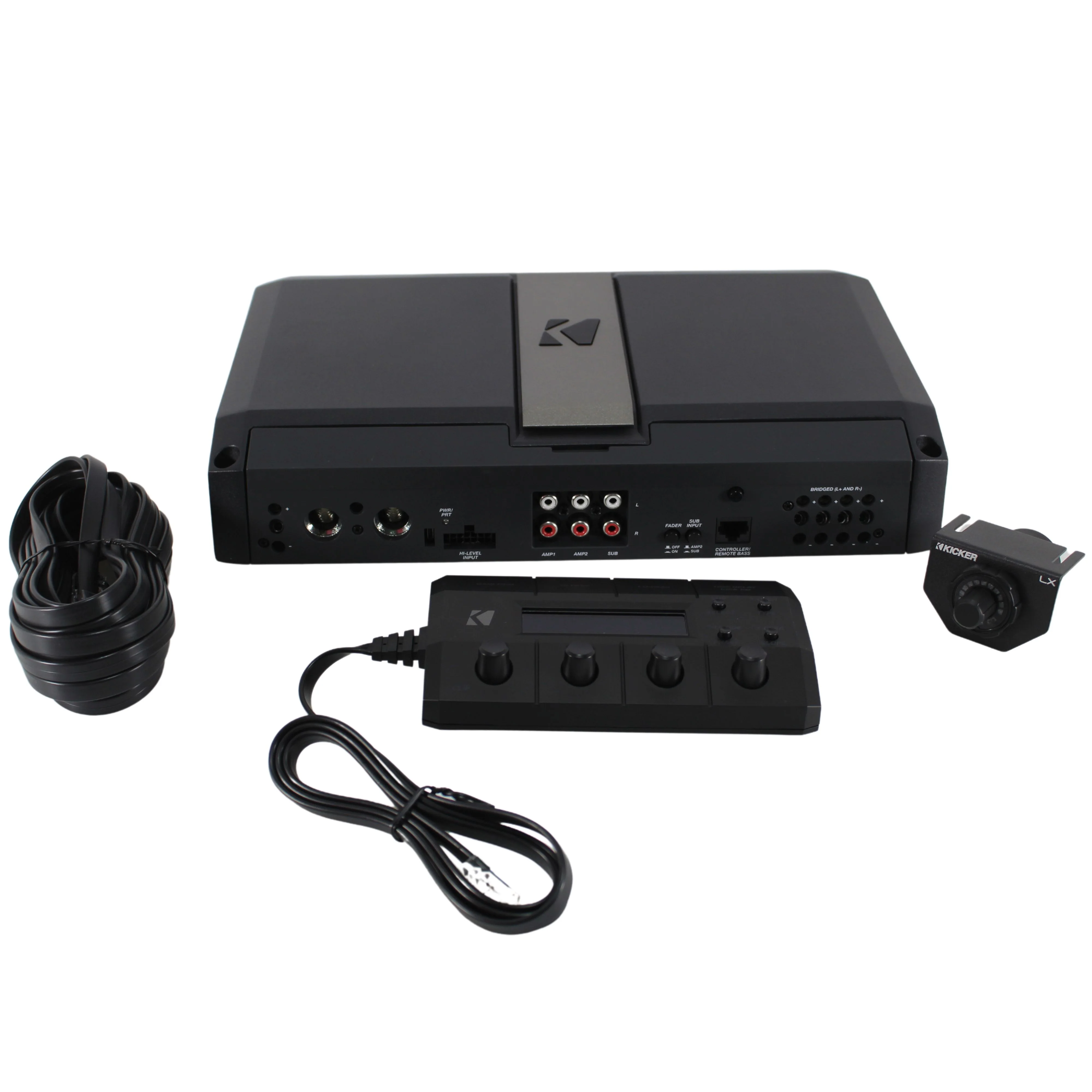

700W 1-Ohm Class D 7-Channel Amplifier w/LX Precision Controller & Smart Bass

• Seven-channel amplifier powers your entire audio system with precision and efficiency.
• Active thermal management ensures consistent performance during extended play.
• SHOCwave2.0 technology restores lost bass for deeper, more dynamic sound.
• Customize your look with a reversible center panel and RGB LED lighting.
• Full DSP functionality through the LX Control Center for perfect sound tuning.

700W 1-Ohm Class D 7-Channel Amplifier w/LX Precision Controller & Smart Bass - 51LX13007

This Listing Includes:

• (1) Kicker 700W 1-Ohm Class D 7-Channel Amplifier w/LX Precision Controller & Smart Bass - 51LX13007

The LX1300.7 7-Channel Class-D Amplifier delivers exceptional power and sound quality, offering flexible outputs for full-range speakers, subwoofers, and midranges. With SHOCwave2.0 technology, it restores bass in digital recordings for a richer sound, while the LX Control Center provides full DSP functionality for precise audio tuning. This 1-Ohm stable amplifier supports versatile subwoofer setups and features active thermal management for extended playtime. Its customizable RGB center panel and dimmable top plate add style, while the remote gain control (LXRC) and LED-illuminated gain knobs ensure convenient system adjustments. Ideal for full-range systems or massive bass, the LX1300.7 is the ultimate amplifier solution.

Key Features:

• Seven Channels of Power: Powers a complete system with 150W x 4 at 2-Ohm for full-range speakers, 65W x 2 at 2-Ohm for midrange, and 700W at 1-Ohm for subwoofers.


• 1-Ohm Stable: Offers ultimate flexibility with most subwoofer wiring options, delivering reliable performance at 1-Ohm.


• Active Thermal Management: Designed for continuous all-day play with active thermal management to prevent overheating.


• Customizable Appearance: Features a reversible center panel with 11 RGB LED accent colors and a unique, dimmable amp top plate for a personalized look.


• DSP Functionality: Complete DSP functionality through the LX Control Center allows you to dial in your sound and fine-tune your audio setup.


• SHOCwave2.0 Technology: Restores lost bass frequencies in digital recordings for a deeper and more accurate sound.


• KickEQ+ Parametric Bass Boost: Provides adjustable bass enhancement for a custom low-end experience.


• Fit+ Differential Inputs: Offers near-universal compatibility with source units, including high and low-level inputs.


• LED Illuminated Gain Knob: Equipped with a clip indicator for better monitoring during use.

Specifications:

• Dynamic Power @ 14.4V: 1500W (Bridged + 1-Ohm Mono)


• Low Level Input Sensitivity: 125mV–5V


• High Level Input Sensitivity: 1V–40V


• KickEQ+ Bass Boost: 0–6dB, 20Hz–80Hz


• Power Protection: Under Voltage 6.5V (warning at 10.5V), Over Voltage 16.5V (warning at 16V)


• Current Draw: <150A at Rated Power


• Power Wiring: LX1300.7: 1 x 150-Ampere, 1/0 Gauge (PKD1 recommended)

Frequency Response:

• Full Range: 20Hz–20kHz


• Sub: 10Hz–160Hz

Variable Filters:

• HiPass: 20Hz–5kHz


• LoPass: 40Hz–5kHz


• BandPass: 20Hz–5kHz


• Sub: 40Hz–160Hz


• Subsonic: 10Hz–80Hz

RMS Power @ 14.4V

• 150W x 4 at 2-Ohm (Full Range)


• 125W x 4 at 4-Ohm (Full Range)


• 250W x 2 at 4-Ohm bridged (Full Range)


• 65W x 2 at 2-Ohm (Midrange)


• 65W x 2 at 4-Ohm (Midrange)


• 700W at 1-Ohm (Subwoofer)


• 550W at 2-Ohm (Subwoofer)


• 300W at 4-Ohm (Subwoofer)

Dimensions:

• Height: 2-3/8" (60.2mm)


• Width: 8-7/16" (214.0mm)


• Length: 12-5/8" (320.0mm)


• Weight: 7-5/8" (193.0mm)
