Aquatic Harley Motorcycle Single Din Bluetooth Stereo /w Free DS18 6X9 Speakers

• This listing includes: (1) Aquatic AV Marine Digital Media Receiver MP-5BT-H
• (2) DS18 6x9" Coaxial Speakers ZXI.694
• (1) Face-plate (1) Rear speaker harness
• (2) Mounting hardware and Owner's Manual

Aquatic AV Harley Davidson Motorcycle Marine Bluetooth Receiver MP-5BT-H & Free DS18 6X9 Coaxial Speakers ZXI.694

Ready to upgrade the radio on your Harley-Davidson motorcycle? Aquatic AV's is a tough, smart all-weather digital media receiver that's ready for the road. With features like built-in Bluetooth connectivity and a clever internal device shelf for your smartphone or media player, the AQ-MP-5BT-H is a great choice. Designed to fit select 1998-2013 Harley-Davidson touring bikes, this radio comes with Harley-specific mounting brackets and a direct plug-in to your Harley's wiring harness.

The AQ-MP-5BT-H gives you lots of entertainment options. You can enjoy your favorite AM/FM stations, connect an MP3 player to one of the two aux inputs, or just take advantage of the Bluetooth connectivity to enjoy your tunes. The big control knob make it easier to manage your music when you're underway, and you can also control your music directly from your motorcycle's handlebar controls

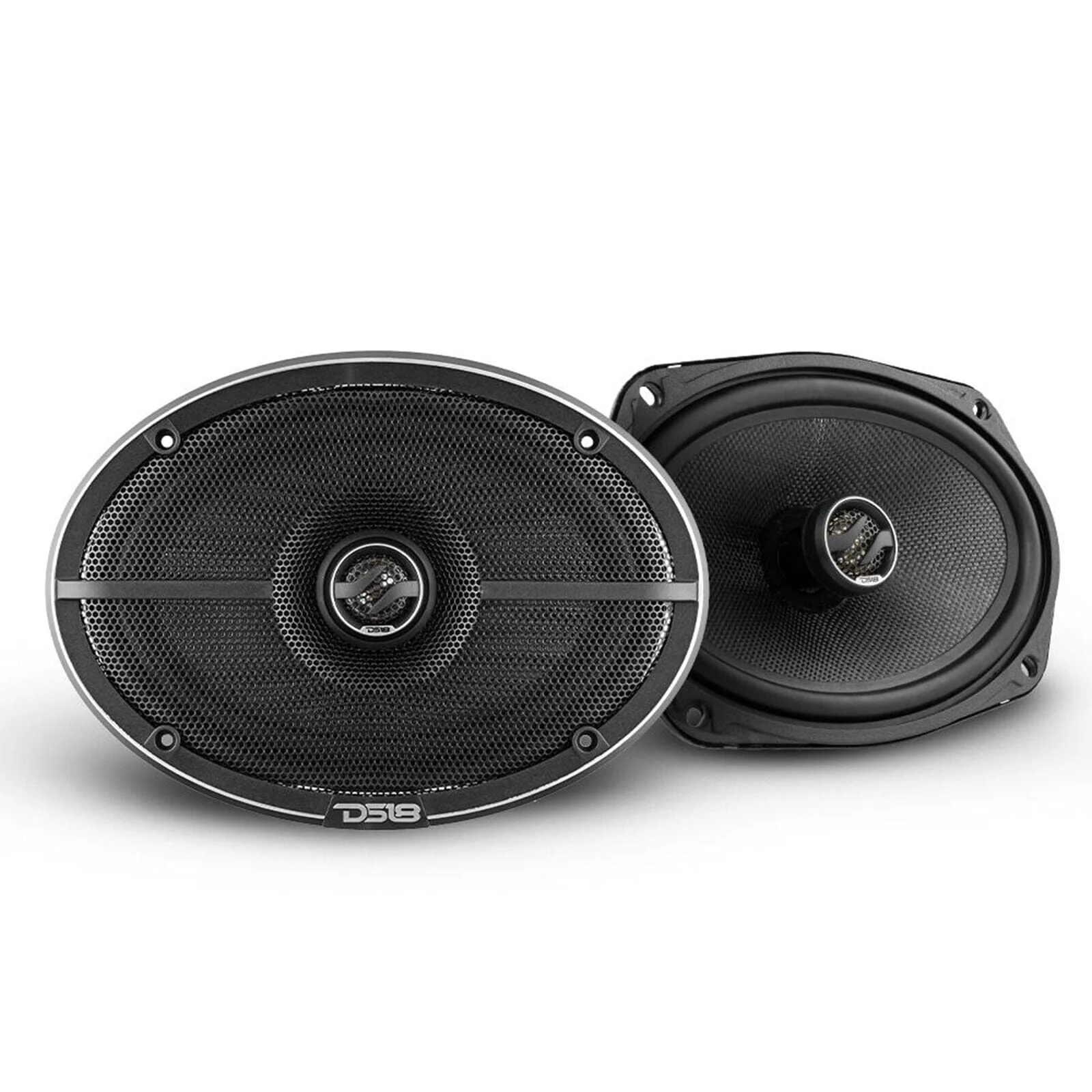

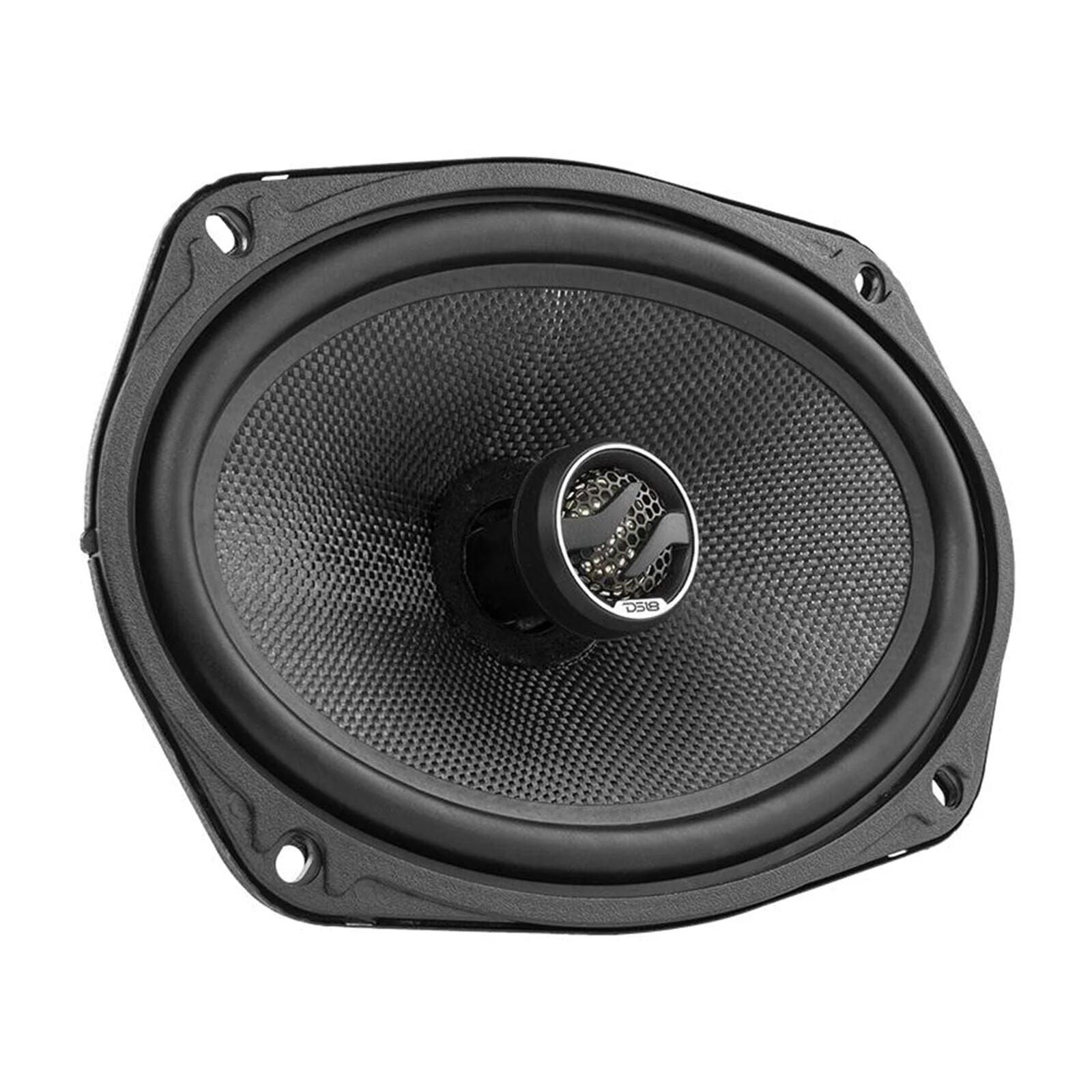

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI-694 is a 6x9", 4 ohm coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2- way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.

This listing includes:

(1) Aquatic AV Marine Digital Media Receiver MP-5BT-H

(2) DS18 6x9" Coaxial Speakers ZXI.694

(1) Face-plate

(1) Rear speaker harness

(2) Mounting hardware and Owner's Manual

GENERAL FEATURES OF RECEIVER MP-5BT-H:

- Waterproof digital media receiver with AM/FM tuner.

- Designed for 1998-2013 Harley-Davidson motorcycles.

- Built-in Class A/B amplifier.

- Monochrome LCD screen.

- Water-resistant storage pocket behind removable face.

- Built-in Bluetooth connectivity.

- Works with Apple and Android phones.

- Control your music directly from the handlebar controls.

- Includes Harley-specific mounting brackets for easy installation.

- Plugs directly into your bike's factory wiring harness.

- IP55-rated for moisture and dust.

SPECIFICATIONS:

Power rating: 24 watts RMS x 4 at 4 ohms (45 peak); 39.99 watts x 4 at 2 ohms (72 watts peak)

Frequency response: 20-20,000 Hz

Current draw: 6mA (standby), 7A (max)

OTHER INFORMATION:

- Inputs: aux (minijack), aux (stereo RCA), rear USB (charging only)

- Outputs: 2-channel 2-volt preamp outputs

- UV-resistant face, conformal-coated circuit board- Manufacturer Warranty: 2 years

--------------------------------------------------------------------

SPECIFICATIONS PER ZXI.694 SPEAKER:

Nominal Diameter: 6x9"

Nominal Impedance: 4 Ohm

RMS Power Handling: 120 Watts

MAX Power Handling: 360 Watts

Sensitivity (1w/1m): 92dB

Frequency Response: 31.5Hz-20Khz

Recommended HI Pass Crossover: 50Hz

Speaker Type: 2-Way

MIDRANGE SPECIFICATIONS:

Voice Coil Diameter: 1.2" (30.4mm)

Voice Coil Former Material: KSV

Winding Material: EISV

Cone Material: Glass fiber

Surround Material: Rubber

Basket Material: Steel

Magnet Material: Barium Ferrite

Magnet Weight: 19.4 Oz / 550g

TWEETER SPECIFICATIONS:

Nominal Diameter: 1" (25.4mm)

Voice Coil Diameter: 0.8"(20.4mm)

Voice Coil Former Material: KSV

Winding Material: EISVM

Diaphragm Material: PEI

Magnet Material: Neodymium

Magnet Weight: 0.3 Oz / 8.5g

THIELE & SMALL PARAMETERS:

Equivalent Volume: 17.52L

Excursion (one way): 3.3mm

Free Air Resonance: 58Hz

Mechanical Factor: 5.77

Electrical Factor: 1.18

Total Factor: 0.98

Mechanical Mass: 23.44g

Mechanical Compliance: 286mm/N

BL Factor: 5.18

Cone Area: 207.7 cm

DC Resistance: 3.5 Ohm

Mechanical Mass w/o air: 20.0g

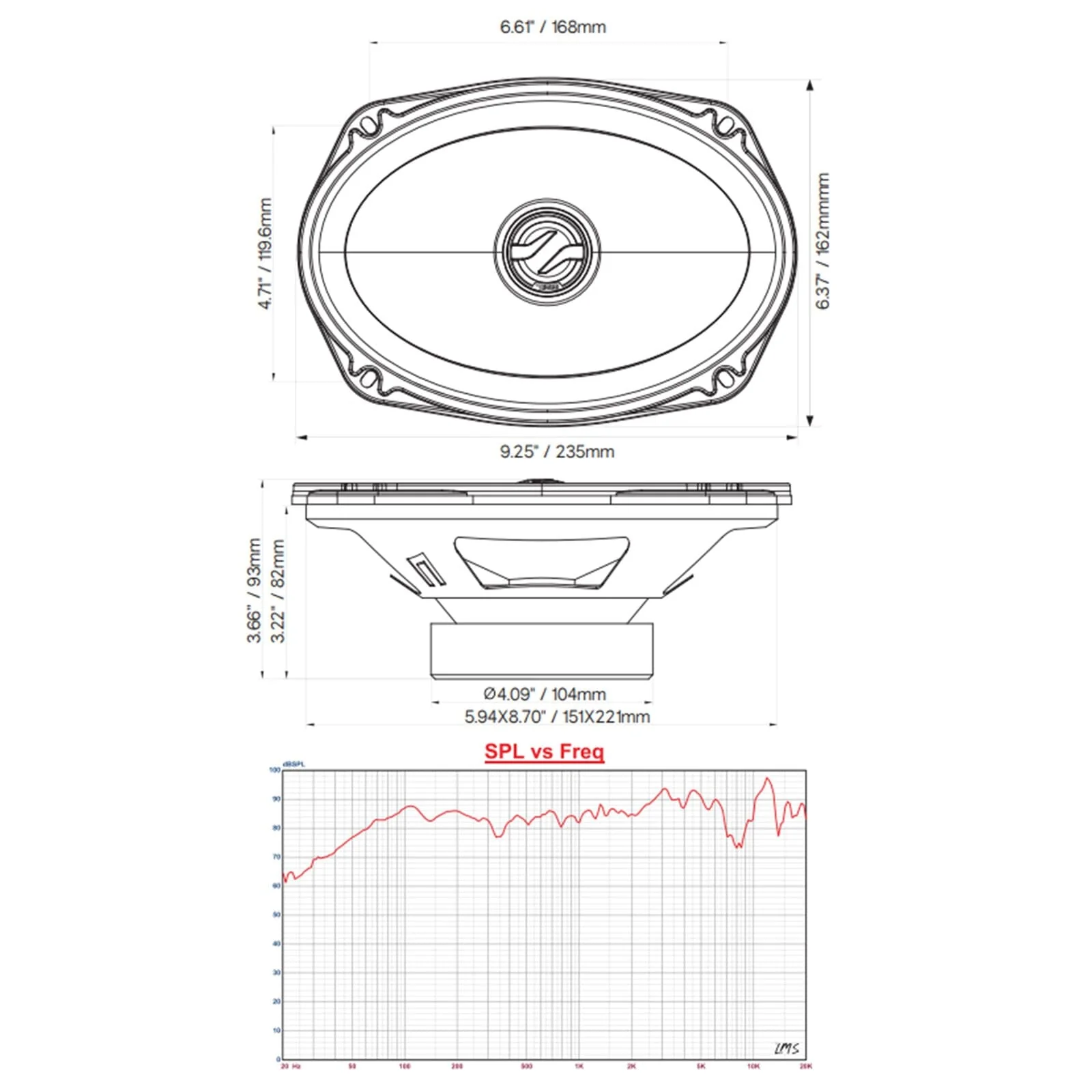

MEASUREMENTS:

Overall Diameter: 6.37x9.25" (162 x 235mm)

Overall Depth: 3.66" (93mm)

Front Mount Baffle Cutout: 5.94x8.70" (151 x 221mm)

Mounting Depth: 3.22" (82mm)

Motor Diameter: 4.09" (104mm)
