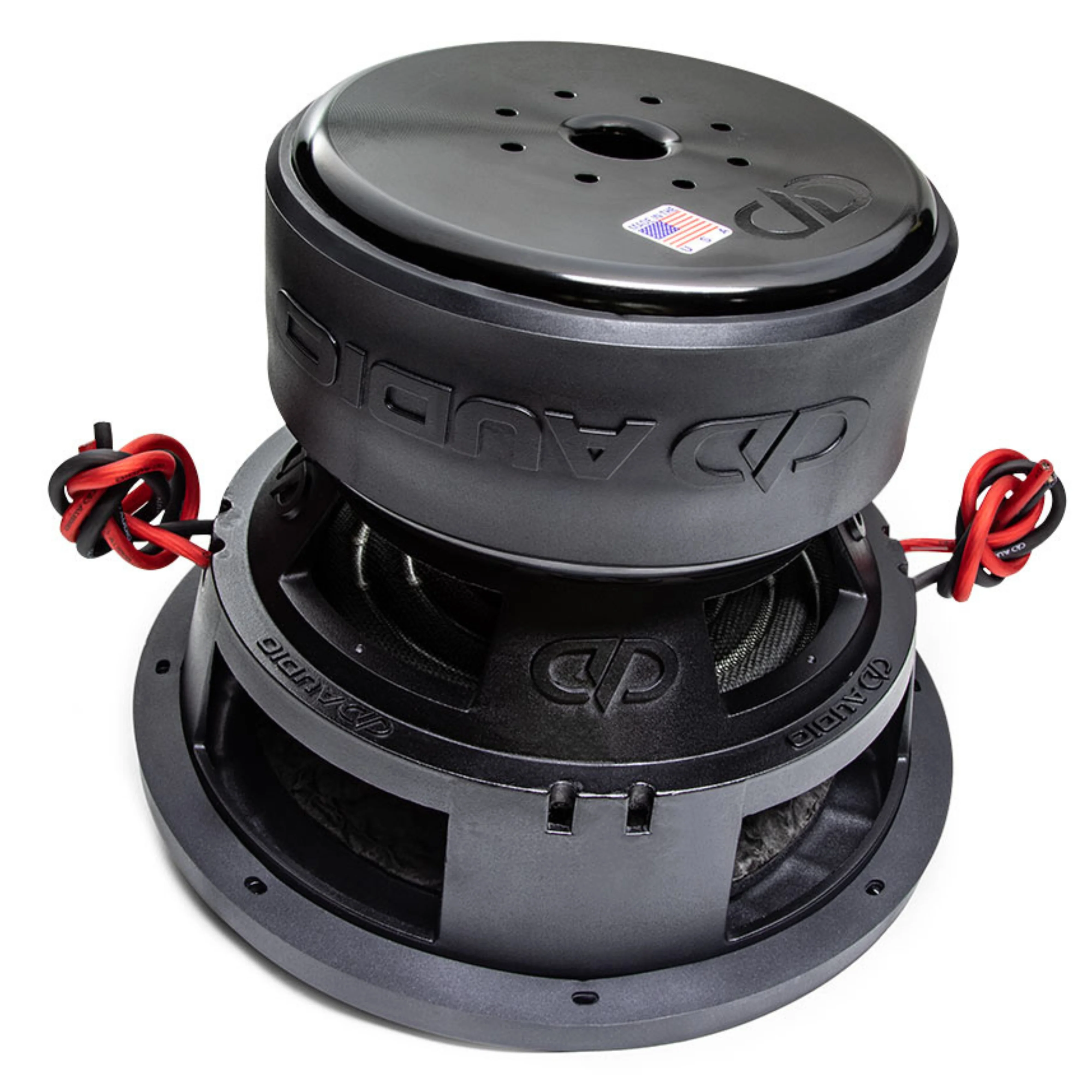

DD Audio 15" Dual 1 Ohm 8000W Peak/2000W RMS Power Tuned Subwoofer 9515k (ESP)

• Massive Power Handling: Equipped to handle 1000 - 2000 Watts RMS with peak capabilities of 8000 Watts
• Advanced Cooling System: Incorporates Free Flow motor cooling for sustained high performance
• Dynamic Bass Output: Delivers deep, impactful bass with a 15-inch size and 22 MM Xmax
• Sturdy and Durable Design: Built with premium materials for long-lasting, intense usage
• Perfect for Large Enclosures: Ideally suited for 3.0 - 6.0 CuFt ported enclosures, offering flexibility and power

DD Audio 15" Dual 1 Ohm 8000W Peak/2000W RMS Power Tuned Subwoofer 9515k (ESP)

This Listing Includes:

• (1) DD Audio 9515k (ESP) 15 Inch Power Tuned Subwoofer

The 9515k (ESP), a part of DD Audio's legendary 9500 series, has made its mark as a true icon in the subwoofer world. Known for its presence in some of the loudest systems globally, this 15-inch subwoofer is a powerhouse, capable of handling 1000-2000 watts of continuous power and peaks up to 8000 watts. It's equipped with a range of top-tier features such as EROM and V-ROM surrounds, Free Flow motor cooling, double slit formers, eight-layer aluminum voice coils, 28mm magnetic gaps, cast aluminum frames, rigid non-pressed cones, and a multi-layer spider system. This subwoofer is designed for those who demand both power and finesse in their audio experience.

Specifications:

• Speaker Size: 15 Inches


• RMS Power: 1000 - 2000 Watts


• Peak Power: 8000 Watts


• Impedance: Dual 1 Ohm


• Voice Coil Diameter: 3.35 Inches


• Piston Diameter: 14.25 Inches


• Fs: 39.03 Hz


• Qms: 6.915


• Qes: 0.738


• Qts: 0.666


• Vas: 52.97 Liters


• Xmech: 92 MM


• Xmax: 22 MM


• Frame Outer Diameter: 16 5/8 Inches


• Frame OD w/Gasket: 16 3/4 Inches


• Mounting Diameter: 15 3/16 Inches


• Mounting Depth: 10 3/8 Inches


• Motor Diameter: 9 5/16 Inches


• Motor Depth: 4 5/8 Inches


• Woofer Displacement: 0.37 CuFt


• Recommended Ported Enclosure: 3.0 - 6.0 CuFt

Features:

• EROM and V-ROM surrounds for precise sound performance.


• Free Flow motor cooling and double slit formers for enhanced durability.


• Eight-layer aluminum voice coils for efficient and powerful operation.


• 28mm magnetic gaps and rigid non-pressed cones for top-quality audio.


• Cast aluminum frames and a multi-layer spider system for robust construction.
