Deaf Bonce Car Audio 2x 6.5" Midrange Speakers 4 Ohm AP-M65AN & 4 CH Amp Package

Deaf Bonce Car Audio 2x 6.5" Midrange Speakers 4 Ohm AP-M65AN & 4 Channel Class D Amplifier Package

Deaf Bonce Apocalypse - Created for new world records, is able to release the full potential of your competitive system to the MAX level. Either you are a veteran of car audio or someone just entering the hobby, this package will take the guess work out of figuring out your build.

This listing includes :

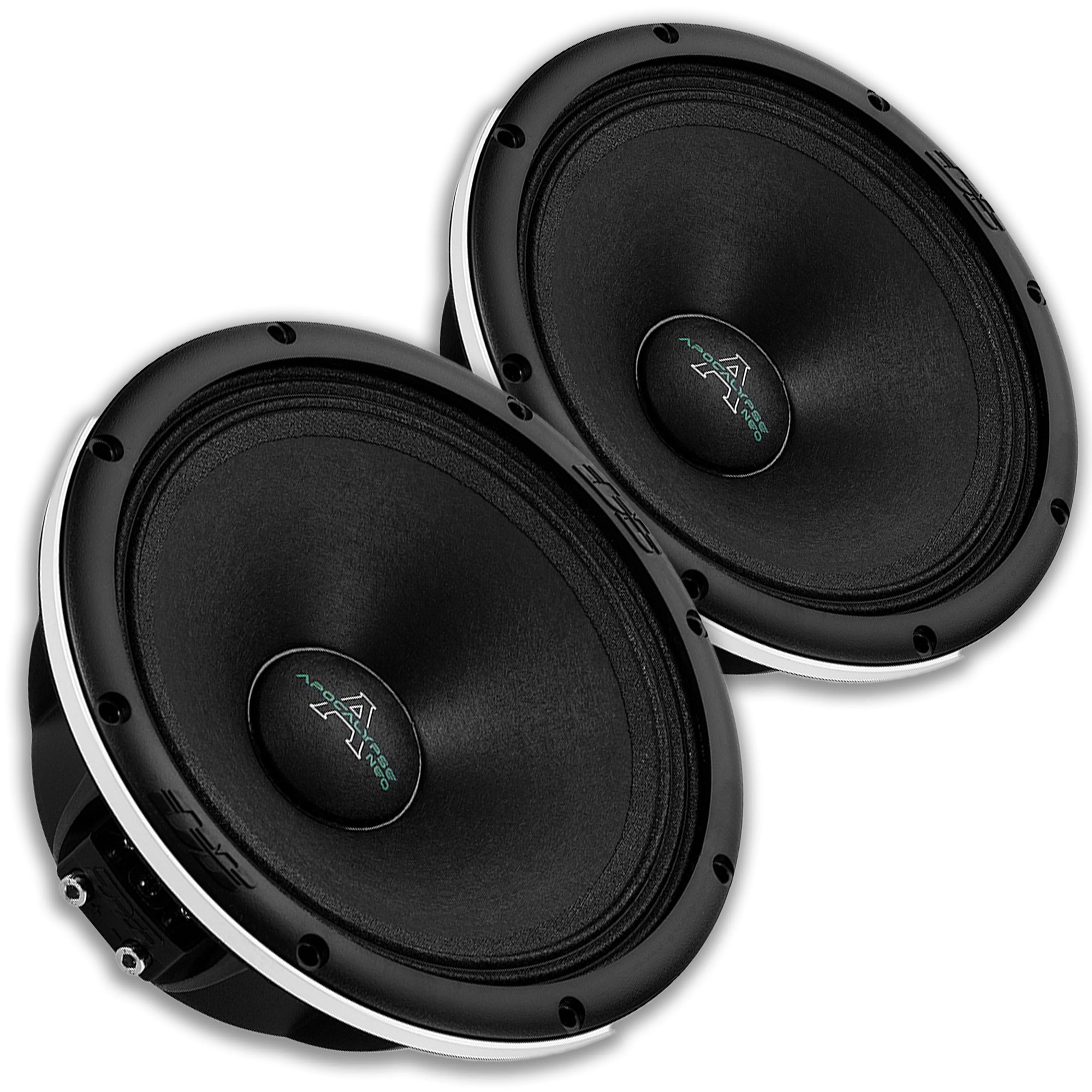

(2) Deaf Bonce 6.5" Apocalypse Midrange Speakers AP-M65AN

(1) Deaf Bonce 4 Channel Class D Amplifier AHL-200.4

SPECIFICATIONS PER SPEAKER:

Nominal Diameter: 6.5

Nominal Impedance: 4 Ohm

MAX Power Handling: 400 Watts

RMS Power Handling: 200 Watts

Sensitivity (1w/1m): 102.5dB

Frequency Response: 200Hz ~ 17KHz

MOTOR:

Voice Coil Diameter: 1.5

Voice Coil Wire Material: CCAW

Cone Material: Pressed Paper

Surround Material: Cloth

Frame Material: Aluminum

Magnet Material: Neodymium

THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 6.14L

Free Air Resonance: Fs - 121Hz

Total Factor: Qts - 0.30

Force Factor: BL - 9.12

DIMENSIONS PER SPEAKER:

Overall Diameter: 6.7 (171.2mm)

Cutout Diameter: 5.98 (152mm)

Mounting Depth: 2.7 (67.5mm)

Overall Depth: 3.0 (75.8mm)

Unit Weight: 3.2 lbs

------------------------------------------------------------------------------------------

SPECIFICATIONS FOR CLASS D AMPLIFIER :

Total Watts (Peak): 1420 Watts

RMS Power @ 4 OHM: 4 x 200 Watts

RMS Power @ 2 OHM: 4 x 330 Watts

RMS Power @ 1 OHM: N/A

RMS Power @ 4 OHM Bridge: 2 x 710 Watts

AUDIO SPECIFICATIONS:

Simultaneous LPF and HPF: Yes

Frequency Response: 10Hz ~ 20KHz

Signal To Noise Ratio: >90dB

Damping Factor: >100

Input Sensitivity: 0.5 ~ 6V

High Pass Filter: 10Hz ~ 8KHz

Low Pass Filter: 30Hz ~ 8KHz

Crossover: 12dB/Octave

Bass Level Adjustment: 0 ~ 12dB @ 45Hz

FEATURES:

Amplifier Class: D

Number Of Channels: 4

Minimum Impedance: 2 Ohm

Led Indicator: Power / Protect

Input Terminal Connection: 0 AWG (53.5mm)

Output Terminal Connection: 8 AWG (8.37mm)

Working Voltage: 9 ~ 15V

Body Color | Finish: Black

DIMENSIONS:

Overall Length: 14.96 (380mm)

Overall Width: 6.85 (174mm)

Overall Height: 2.17 (55mm)

Unit Weight: 10.8 lbs
