Return Notes:

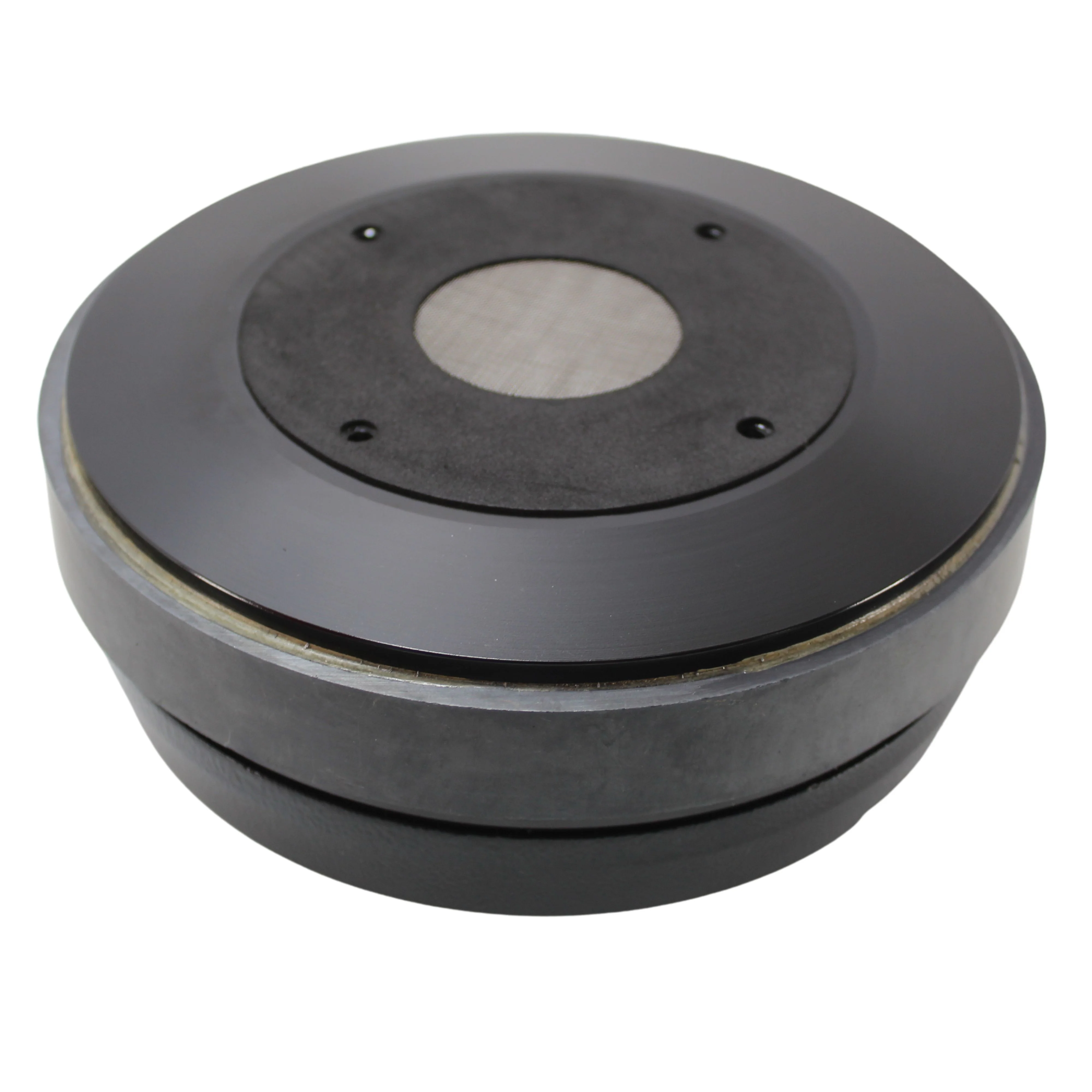

- Item has Scratches (pictured) on the bottom of speaker
- Item was tested and works as normal.

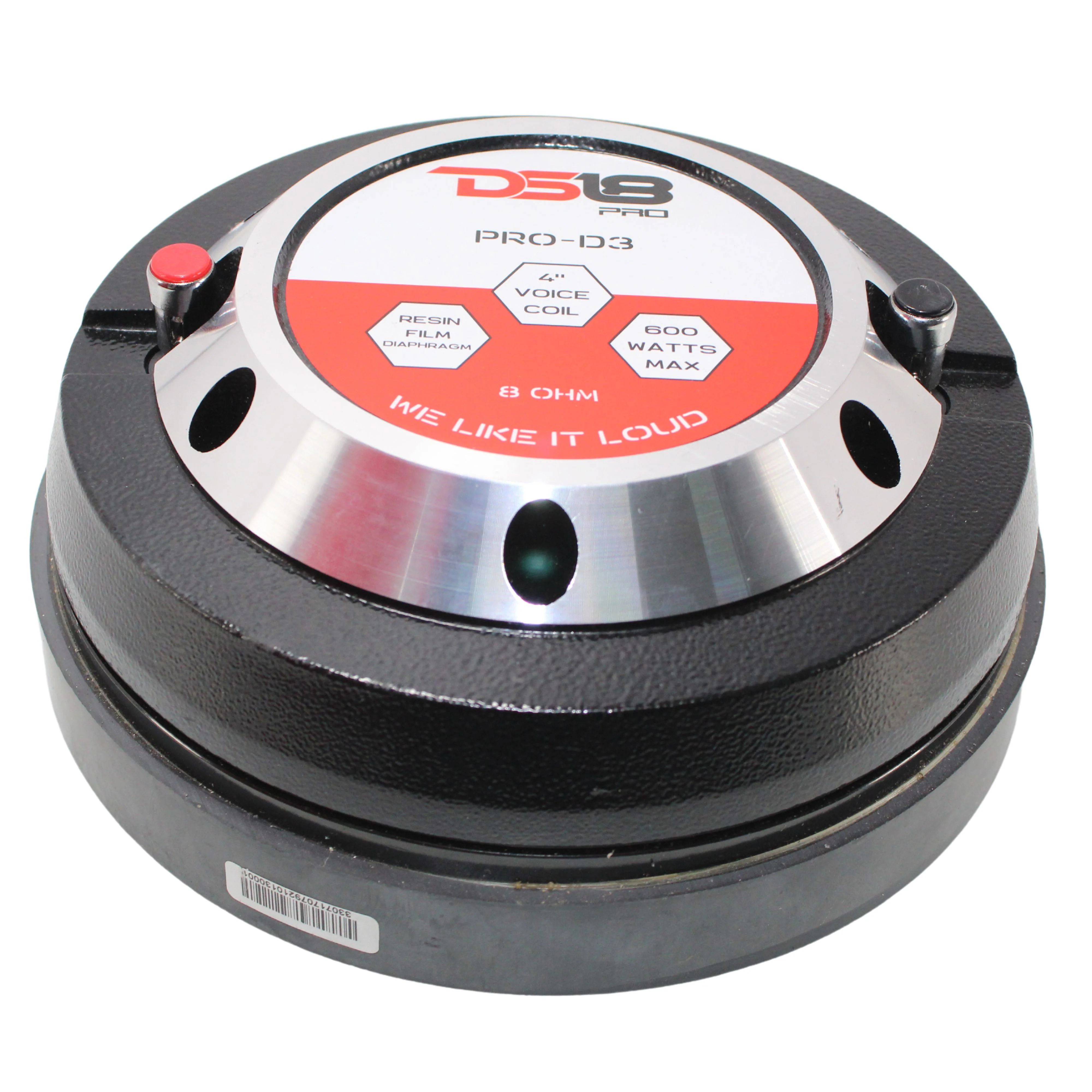

DS18 4" 600 Watt 8 Ohm Phenolic Bolt On Throat Compression Driver PRO-D3
Engineered and Designed in the US, the DS18 Compression Drivers with aluminum horns are the top of the line high frequency driver/tweeter/horns in the industry. These bad boys deliver so much power that you'd think with one horn your whole system is prepared for a major concert. Simply put, there are no compression drivers that can compare to the sophistication, beauty, and precision of these ones, especially in the Pro Audio/Voceteo World. Thanks to the demands of our customers, after months of relentless tests, DS18's team of audio-experts perfected the PRO line. We are ecstatic to share with you this achievement of hard-work and non-stop innovating attitude!
SPECIFICATIONS:
Type: Compression
RMS Power: 300W
MAX Power: 600W
Sensitivity (1w/1m): 104.5dB
Impedance: 8 ohm
Frequency Response: 700Hz - 16.5KHz
Recommended Hi Pass Crossover: 800 Hz / 12 oct
Diaphragm Material: Resin
Throat Diameter: 2"
Exit Throat Diameter: 99.8 mm (4)
Voice Coil Diameter: 99.8mm (4)
Voice Coil Wire: CCAW
Voice Coil Former Material: KAPTON
Overall Diameter: 200mm (7.87)
Overall Depth: 95mm (3.74)
Mounting Bolt Cirle: 102mm (4)
Net Weight: 16.97 lbs (7.7 KG)
Magnet Weight: 98 oz
Magnet Material: Ferrite
Flux Density: 2.1T
Replacement Diaphragm Model: PRO-D3VC
WARNING: EXTREMELY LOUD!!
