DS18 8" XL Series Mid-Range Loudspeaker 400 Watts Rms 4-Ohm XL800-4

• 400W RMS and 800W MAX power handling for an immersive sound experience.
• Crafted with a 2" Kapton voice coil and non-pressed paper cone for enhanced durability
• 56oz ferrite magnet for powerful and accurate bass responses.
• Satin black aluminum basket enhances aesthetics and provides structural integrity.
• 60Hz-8KHz frequency response captures nuances across music genres.

DS18 8" XL Series Mid-Range Loudspeaker 400 Watts Rms 4-Ohm XL800-4

This Listing Inlcudes:

• (1) 8" XL Series Mid-Range Loudspeaker 400 Watts Rms Speaker

DS18’s 8XL800-4 redefines audio excellence with power and precision. This 8-inch mid-range loudspeaker, available in 4-ohm and 8-ohm, ensures seamless integration with diverse audio systems. Boasting 400W RMS and 800W MAX power, it delivers a captivating sound experience with a 60Hz-8KHz frequency response, capturing nuances across music genres. Crafted with a 2" Kapton voice coil, non-pressed paper cone, and a satin black aluminum basket, this speaker combines durability with optimal sound reproduction. The 56oz ferrite magnet ensures powerful and accurate bass responses, elevating your audio game.

Specifications:

• SKU: 8XL800-4


• Nominal Diameter: 8" / 203mm


• Nominal Impedance: 4 Ohm


• RMS Power Handling: 400 watts


• MAX Power Handling: 800 watts


• Sensitivity (1w/1m): 99dB


• Frequency Response: 60Hz-8KHz


• Recommended HI Pass Crossover: 90Hz


• Sold in Pair or Single: Single


• Grill Included: No

Motor:

• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Non-pressed Paper


• Dust Cap Material: Paper


• Bullet Material: N/A


• Bullet Color/Finish: N/A


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Color/Finish: Satin Black


• Magnet Material: Ferrite


• Magnet Weight: 56 Oz


• Displacement Volume: 0.85L / 0.03ft3

THIELE & SMALL PARAMETERS:

• Equivalent Volume: 14.8L / 0.52ft3


• Excursion (one way): 2.3mm


• Free Air Resonance: 90Hz


• Mechanical Factor: 4.251


• Electrical Factor: 0.356


• Total Factor: 0.328


• Mechanical Mass: 15.784g


• Mechanical Compliance: 0.23mm/N


• BL Factor: 8.93


• Voice Coil Inductance: 0.05mH


• Cone Area: 211.24cm


• DC Resistance: 3.2 ohm


• Mechanical Mass w/o air: 18g

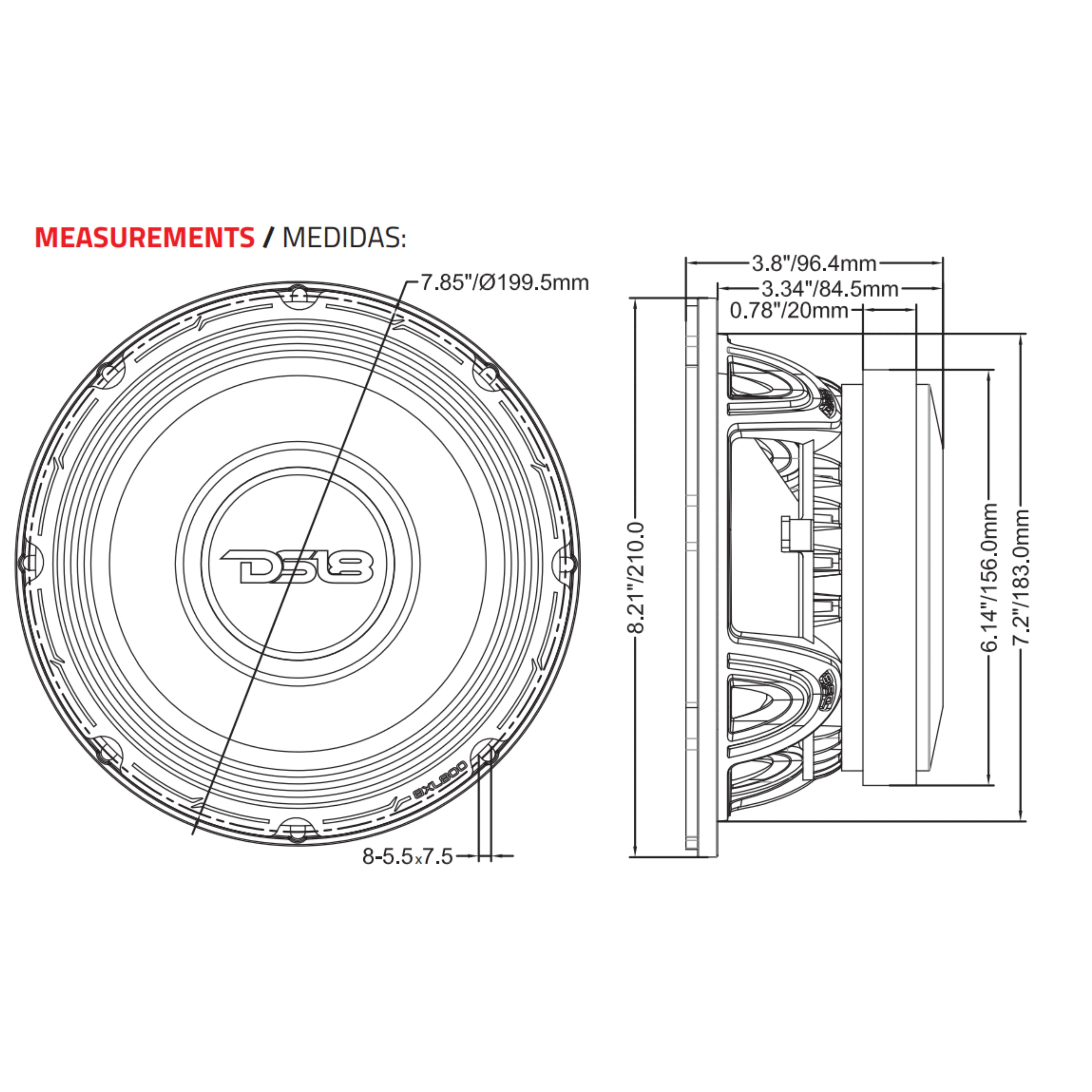

MEASUREMENT:

• Overall Diameter: 8.2" / 210mm


• Overall Depth: 3.8" / 96.4mm


• Front Mount Baffle Cutout: 7.2" / 183mm


• Mounting Depth: 3.34" / 84.5mm


• Motor Diameter: 6.14" / 156mm
