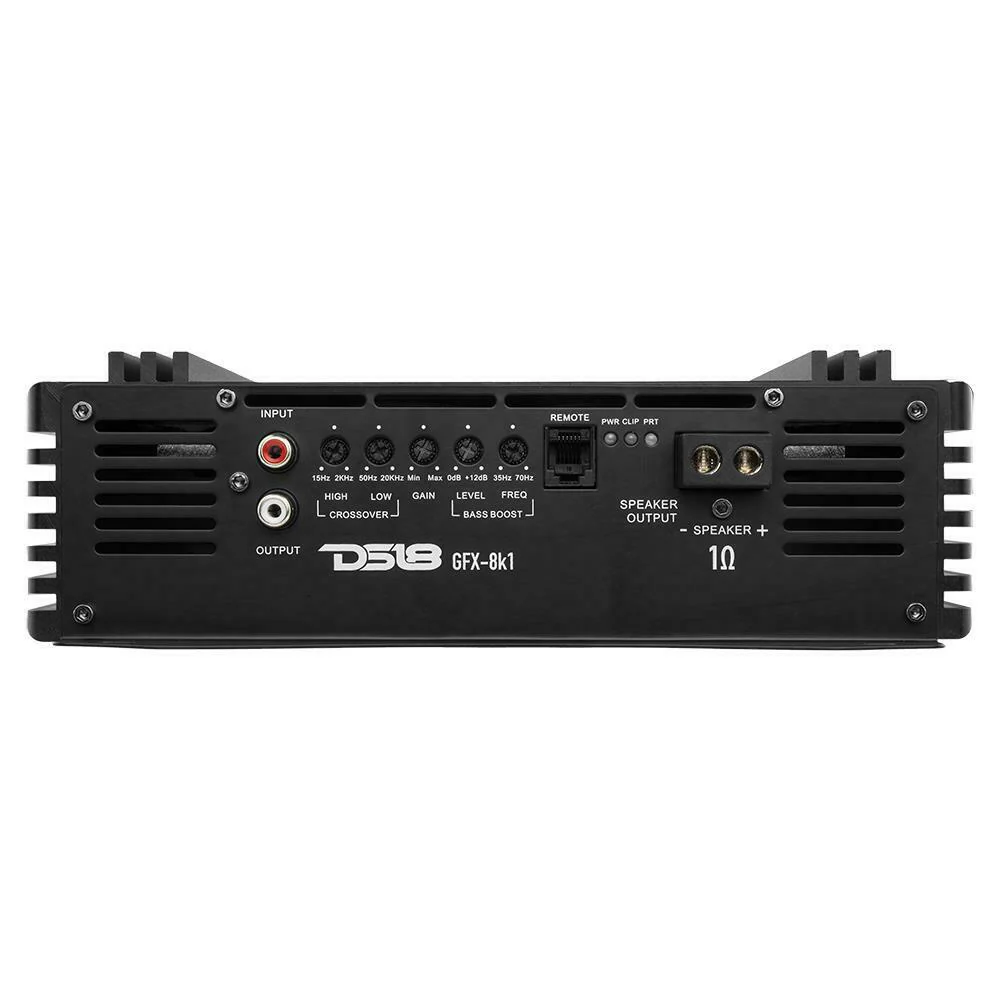

DS18 GFX Series Monoblock 8000 Watts 1 Ohm Class D Full Range Amplifier GFX-8K1

DS18 GFX Series Monoblock 8000 Watts 1 Ohm Class D Full Range Amplifier GFX-8K1

The DS18 GFX series of amps are for the enthusiast that is serious about squeezing every watt possible out of your sound system for a concert hall type of sound that can be heard for miles away!

This Listing Includes:

(1) Amplifier

(1) Bass Knob

Features:

- Full range Capable Class - D Amp

- Compact Size and wide Band Crossover for more applications

- Variable Full Crossover Filter

- Surface Mount Component

- Audio Precision Quality Control Verification

- Stable & Reliable Four Layers PCB Trace Layout

- Heavy Duty Heat-sink Chassis and Forced Cooling System Build In

Specifications:

Model - GFX-8K1

Power @ 1 ohms (14.4V) - 8000W

Power @ 2 ohms (14.4V) - 5000W

Minimum Speaker Load - 1 OHM

THD - 1%

Input Sensitivity - 0.5-8V

Hi Pass Crossover (12dB/Oct) - 15Hz-2KHZ

Lo Pass Crossover (12dB/Oct) - 50Hz-20KHZ

Frequency Response - 15Hz-20KHZ

Bass Boost - 0-12dB

Bass Boost Frequency - 35Hz-70Hz

Working Voltage - 9-15V

Input Terminal Size - 1/0AWG

Output Terminal Size - 8 AWG

Dimensions

(mm) 416 x 236 x 72
