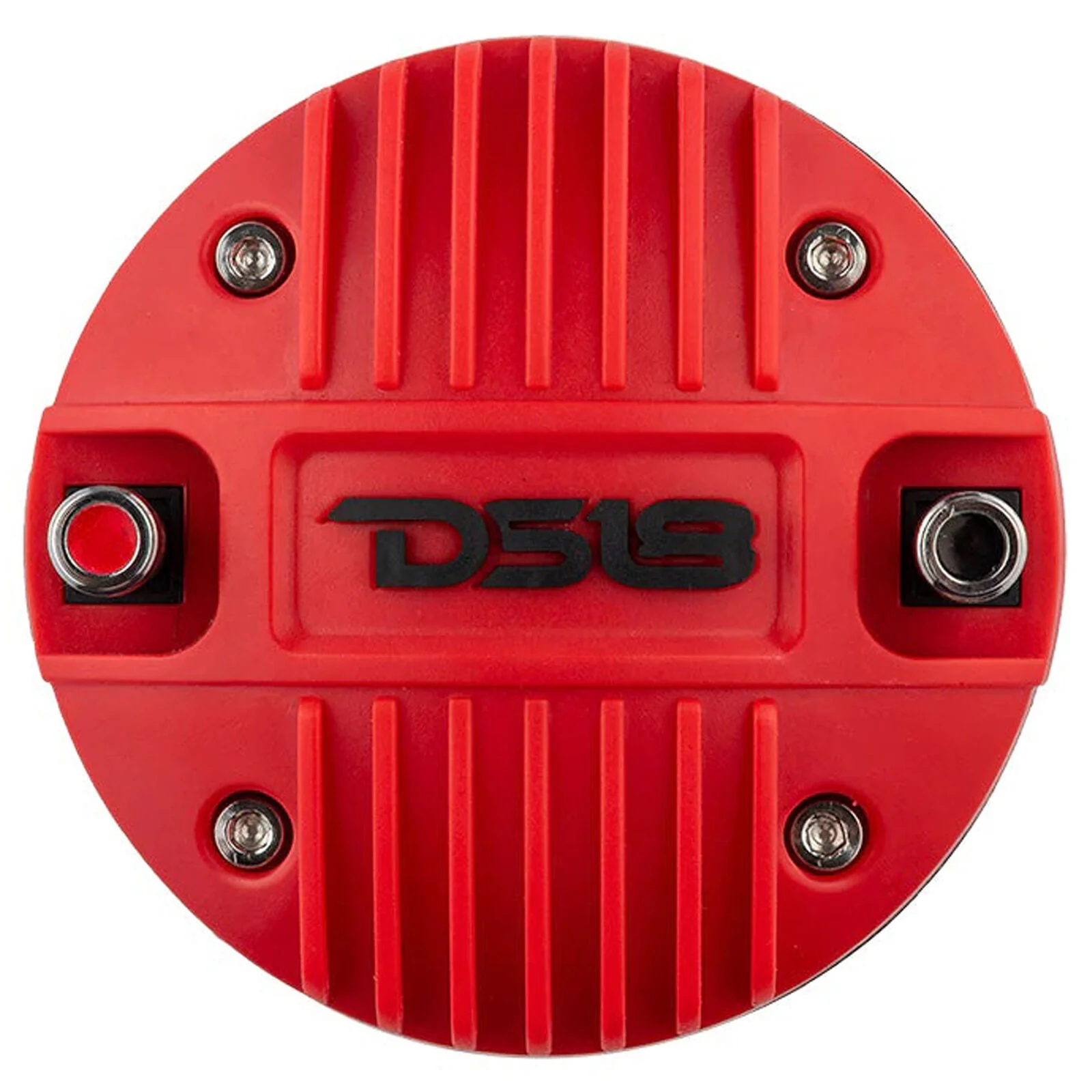

DS18 1.35" Titanium Twist-On Compression Driver 320 Watts 8 Ohm PRO-DR1.35

DS18 1.35" Titanium Twist-On Compression Driver 320 Watts 8 Ohm PRO-DR1.35

With the ever-evolving likes of pro audio that DS18 provides, we are happy to present our next evolution of driver, the PRO-DR1.35 Titanium Compression Driver! This 1.35 inch driver features a titanium compression diaphragm. These compression horns have a great frequency response of 500hz to 20KHZ, so they can play a much wider range than normal. They come in 8-ohm DCR and with a sensitivity of 103dB, they will not require full power to sound great! They all come with beautiful push terminals and are surrounded by a very aesthetic red DS18 cover. These drivers will require a 1" Horn Throat to complete the package that is sold separately. These new DS18 titanium horns are sure to bring brightness to any system needing massive high-end drivers!

This listing includes:

(1) DS18 1" Compression Driver PRO-DR1.35

(1) DS18 4.7F 100V Bass Blocker

(1) Owner's Manual

SPECIFICATIONS:

Throat Diameter: 1"

Installation Type: Screw-On

Nominal Impedance: 8 Ohms

AES Power Handling: 80 Watts

Program Power Handling: 160 Watts

Peak Power Handling: 320 Watts

Sensitivity (1w/1m): 103 dB

Frequency Response: 500Hz ~ 20KHz

Recommended Hi Pass Crossover: 110Hz

Voice Coil Diameter: 1.35"

Voice Coil Former Material: Kapton

Winding Material: CCAW

Diaphragm Material: Titanium

Magnet Material: Ferrite

Magnet Weight: 16 Oz

Dimensions:

Overall Diameter: 3.54" (90mm)

Overall Depth: 2.51" (64mm)

Bolt Pattern/Type: M34 (1.34")

Mounting Depth: 1.61" (41mm)
