Pair of Deaf Bonce 8 Mid-Bass Speakers 600W 4 Ohm w/ 1" Neo Tweeters 100W

• Impedance: 4 Ohm
• MAX Power: 600 Watts
• RMS Power: 300 Watts
• Magnet Material: Ferrite

Pair of Deaf Bonce 8 Mid-Bass Speakers 600W 4 Ohm w/ 1" Neo Tweeters 100W

This listing includes:

• (2) Deaf Bonce 8" Speakers AP-W81AC


• (2) High Frequency Black Tweeters MPT-17N


• (2) Bass Blockers


• (1) Set of Hardware


• (2) Surface Angle Mounts


• (1) Massive Window Decal


• (1) Owner's Manual


• (2) Positive Connection Terminals


• (2) Negative Connection Terminals


• (1) Deaf Bonce Stickers "Apocalypse" and "DB"


• (1) Warranty Card

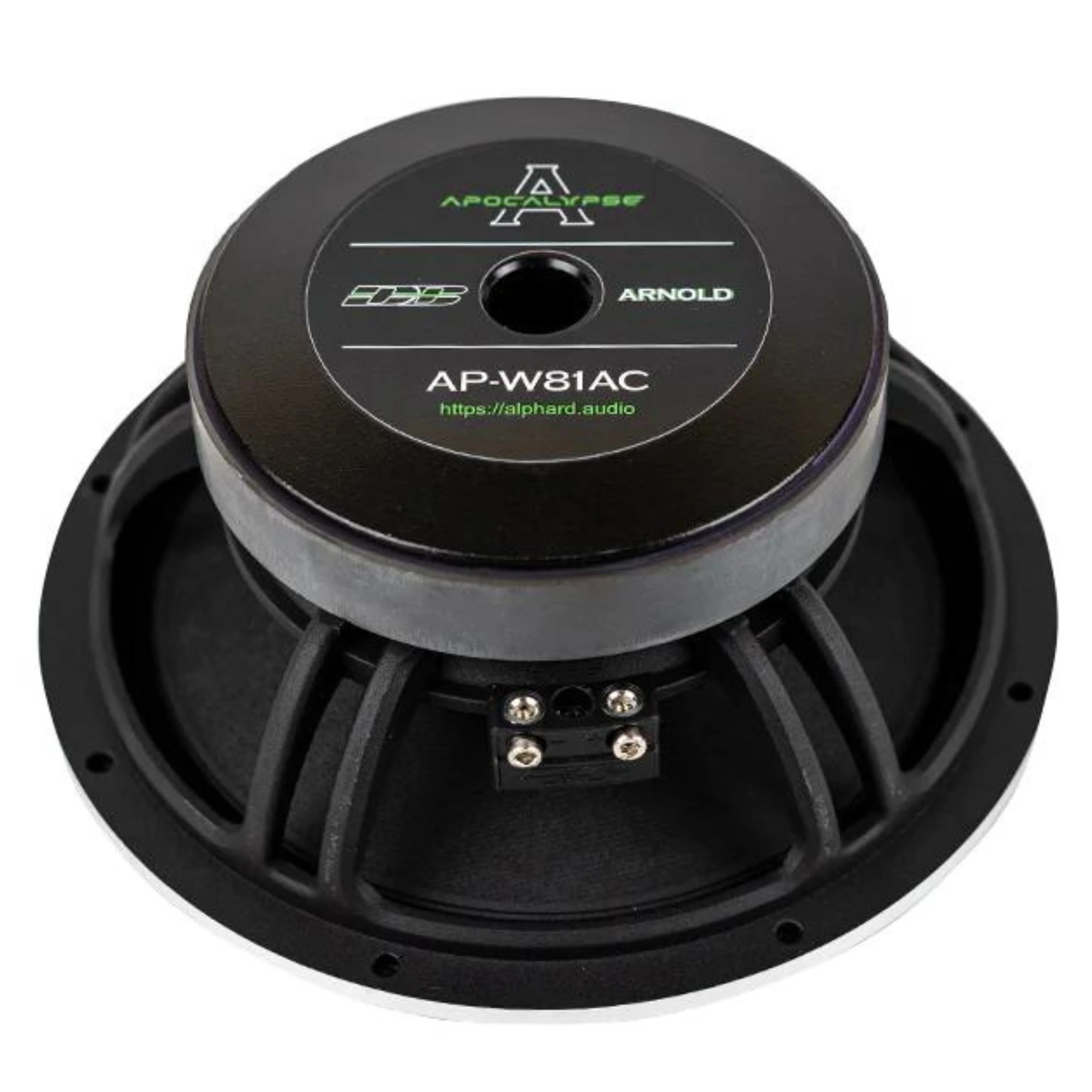

The incredible power of sound! Apocalypse AP-W81AC - heavy duty speaker designed for incredibly loud systems. Speaker features a massive and very powerful magnetic system, thanks to which managed to achieve really high output in the range of 70 ~ 5000 Hz.

The 2 inch voice coil for this type of speaker, is able to achieve the necessary balance between the lightness of the speaker's moving mass and efficiency of its magnetic system. This speaker will give you very deep and succulent sound in the mid-bass range.

SPECIFICATIONS PER AP-W81AC SPEAKER:

• Type: Midrange


• Size: 8"


• Frequency response: 70-5000 Hz


• Voice coil size: 2.00"


• Cone: Paper


• Magnet: Ferrite


• Voice coil wire: Copper


• Surround: Cloth


• RMS Power: 300 W


• MAX Power: 600 W


• Frame: Steel


• Impedance: 4 Ohm


• SPL: 94.00 dB


• Fs: 70.00 Hz


• Qts: 0.36


• BL: 9.30


• Vas: 17.50 L


• Mounting depth: 3.2" (83.1 mm)


• Cut-out dimension: 7.56" (192.0 mm)


• Gross weight: 16 lb (6.46 kg)

Recommended filter settings:

• The high pass filter HPF (the filter that cuts all frequencies below those set for the filter) should be set to 70-100 Hz (24 dB/Oct)


• The low pass filter LPF (the filter that cuts all frequencies above those set for the filter) should be set to 600-800 Hz (12 dB/Oct)


• Recommended amplifiers: AAK-180.4, AAK-201.4D, AAB-1200.2D, AAB-600.2D, AAB-500.4D, AAB-400.4D, AAB-300.4D, ARU-3000/2, AHL-300.4, AHL-200.4

SPECIFICATIONS PER MPT-17N TWEETER:

• Frequency response: 2000-20000 Hz


• Package quantity: Pair


• Voice coil size: 1.00 inch


• Magnet: Neodymium


• RMS Power: 25 W


• MAX Power: 50 W


• Impedance: 4 Ohm


• SPL: 95.00 dB


• Diaphragm Material: Silk


• Voice Coil Wire: Pure Aluminum

DIMENSIONS PER MPT-17N TWEETER:

• Overall Diameter: 2.2 inches


• Mounting Depth: 1 inches


• Cut-out Dimension: 1.83 inches


• Voice Coil: 1 inches


• Gross weight: 0.66lbs
