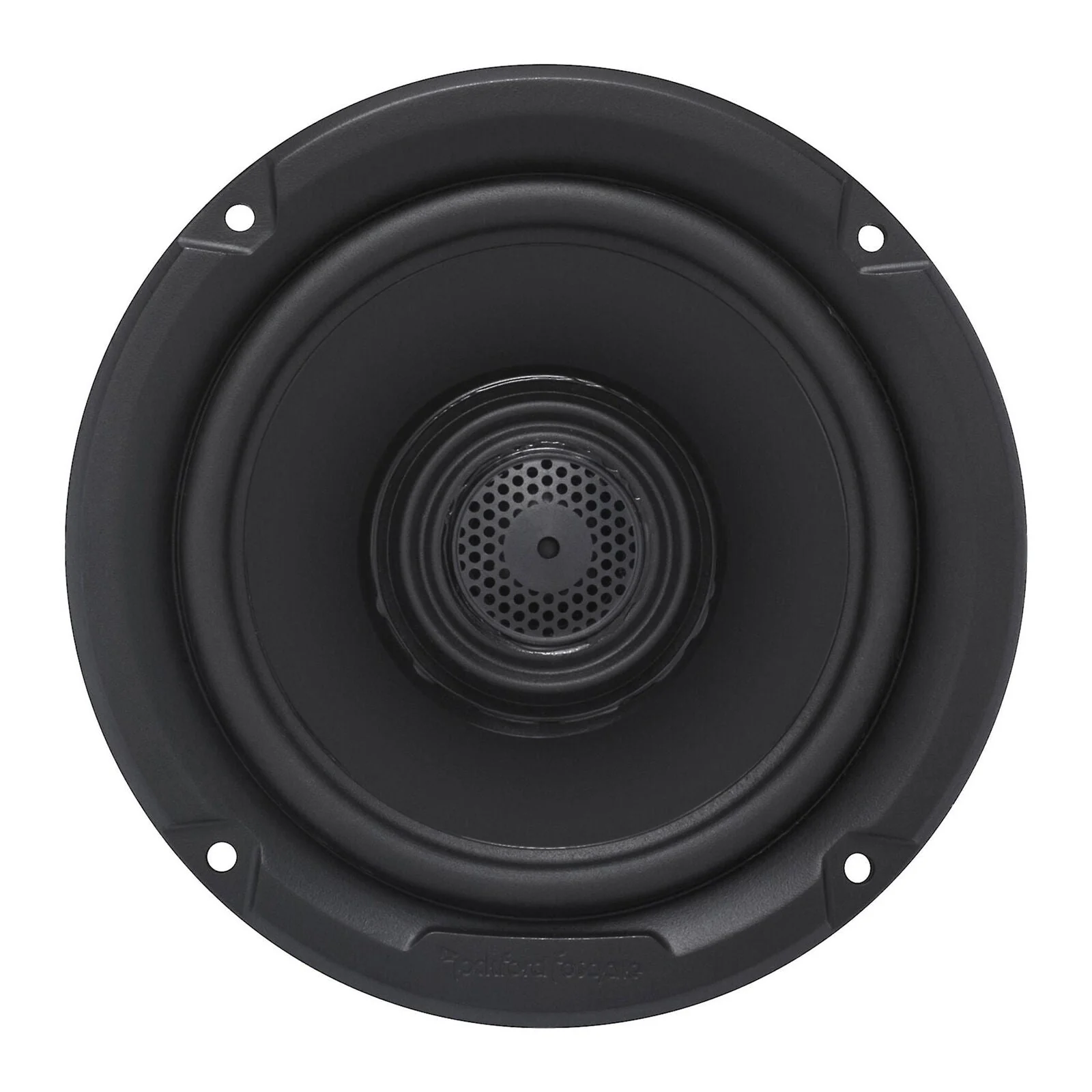

Rockford 6.5" Coaxial 150W 4 Ohm Harley Davidson Fairing/Tour-Pak Speakers

Rockford 6.5" Coaxial 150W 4 Ohm Harley Davidson Fairing/Tour-Pak Speakers

The TMS65 full-range coaxial speaker is designed for direct fitment application in 2014 and a newer Harley-Davidson motorcycle in both the fairing and Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.

It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low-frequency range. It also features an ultra-efficient 25mm dome tweeter with an integrated phase plug for crisp clear highs even at highway cruising speeds.

It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies for both fairing and Tour-Pak applications.

This Listing Includes:

(2) Speakers

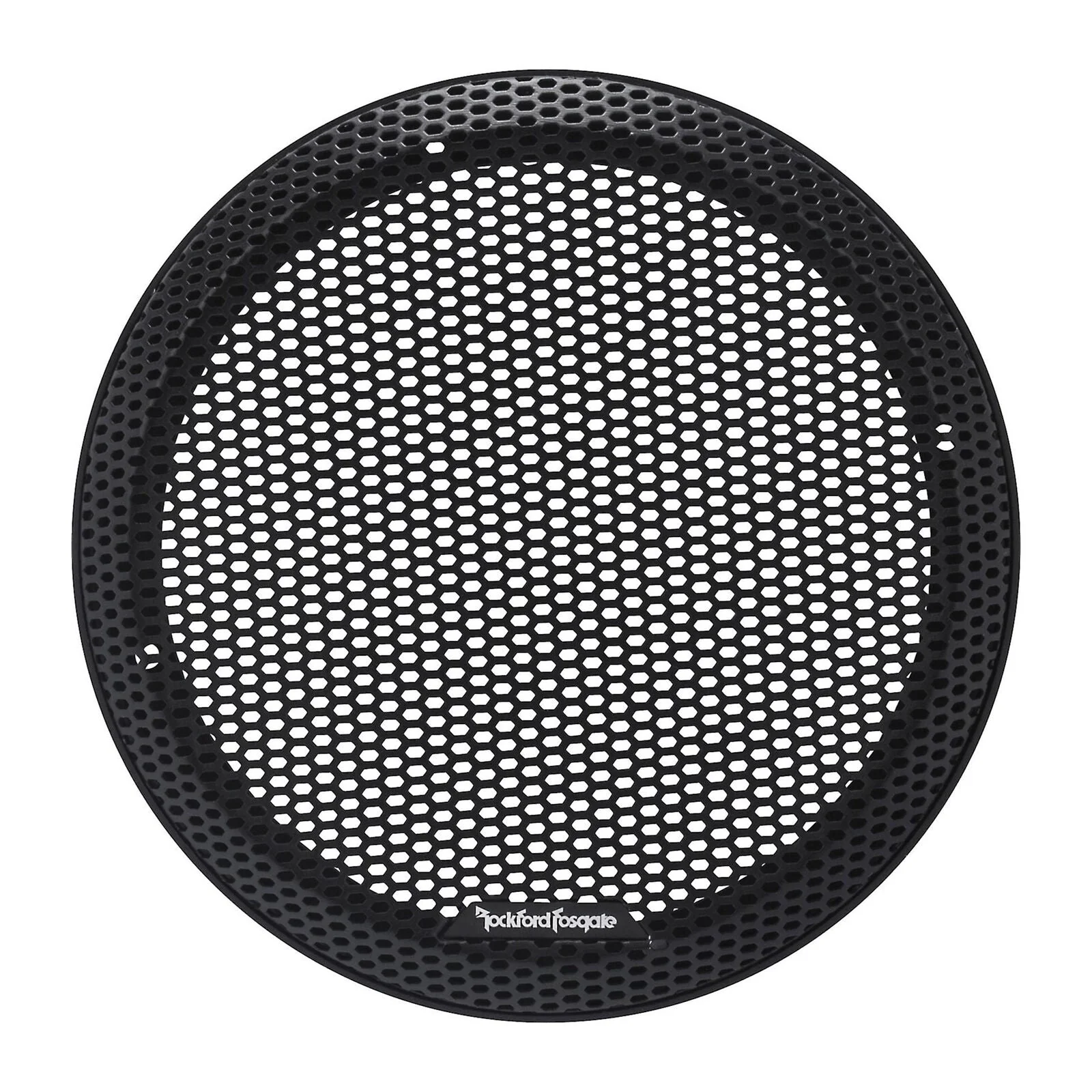

(2) 2015+ Road Glide Grilles

(2) 2014+ Street Glide Grilles

(2) 2014+ Tour-Pak Grilles

(1) Hardware Pack

Features:

- Element Ready design that is weather and water-resistant

- Neodymium Tweeter with Integrated Phase Plug and ASA Grill

- UltraEfficient 25mm Proprietary Film Dome Tweeter

- CarbonFiber ReInforced Polypropylene Cone

- Santoprene VAST Surround

- CoMolded Cone and Surround

- Santoprene Front Isolation Spider

- PolyCotton Spider

- High Power 35mm VoiceCoil

- UltraEfficient Neodymium Ring Magnet Motor

- UltraHigh Temperature Glass Reinforced Polymer Frame

- Integrated Spade Terminals

- Integrated 6dB Crossover with High Power Polyester Capacitor

- Low Profile Coaxial Tweeter Design

- Discreet (Hidden) Tweeter Wire

- Designed for 2014+ Harley-Davidson Street Glide/Road Glide and Tour-Pak

- Grilles for Fairing and rear Tour-Pak included

Specifications:

Speaker Type: 2-Way Coaxial

Midrange Size(Nominal Diameter): 6.5"

Nominal Impedance (Ohms): 4-Ohm

Power Handling (RMS): 75 Watts RMS

Power Handling (MAX): 150 Watts MAX

Crossover: Built-in tweeter crossover

Grille/Trim Ring Included: Yes

Mounting Hardware: Yes

Voice Coil Diameter (in/mm)1.40"/35.56 mm

Frequency Response (Hz)56 Hz - 20 kHz

Sensitivity(dB @ 1W/1M): 91 dB

Sensitivity(dB @ 2.83V/1M)94 dB

Vehicle Compatibility:

Harley-Davidson Road Glide 2015+

Harley-Davidson Street Glide 2014+

Dimensions:

Mounting Diameter: 5.0"

Mounting Depth: 2.1"
