Sundown Audio 8" Mid-Range Pro Audio Speaker 600W Peak 8Ohm SVC (Single) VEX-8-8

• Dual shorting-ring system
• Neodymium pole-cap magnet
• Sturdy cast-aluminum frame
• Twelve gaps vents and a chamfered, large-diameter pole vent
• Non-resonant carbon-fiber cone & dust-cap

Sundown Audio 8" Mid-Range Pro Audio Speaker 600W Peak 8 Ohm (Single) VEX-8-8

The Sundown Audio VEX series is our top-of-the-line high efficiency mid-range series. The VEX-8 was designed to handle an enormous 300-watts RMS thanks to its generous 2.5†coil (with a full 20mm winding length) and highly efficient airflow system consisting of twelve gaps vents and a chamfered, large-diameter pole vent. The long coil also affords the VEX-8 a full 9mm of linear x-max one-way so it can play lower than many other high-efficiency drivers without distortion. The inductance is kept in check by a dual shorting-ring system (magnet ID & pole cap) which drops the LE spec to less than 25% of the RE value. This allows the high-frequency extension to reach all the way up to 5,000 Hz where it then falls of naturally and smoothly on its own thanks to the extremely strong and non-resonant carbon-fiber cone & dust-cap assembly. We still achieved a 94.3dB sensitivity by combining a large diameter, high-strength ferrite motor with a neodymium pole-cap magnet! The whole package is held together with a sturdy cast-aluminum frame that features extensive spider cavity venting to further increase thermal power handling.

This Listing Includes:

(1) 8" Mid-Range Pro Audio Speaker 600W Peak 8 Ohm (Single)

Features:

• Power Handling: 300 Watts RMS


• Impedance: 8 SVC


• Vented cast frame


• 3 inch voice coil


• X-Max 9mm


• Excellent for Mid-bass


• Mounting Depth : Approximately  4 inches


• Rear Vented

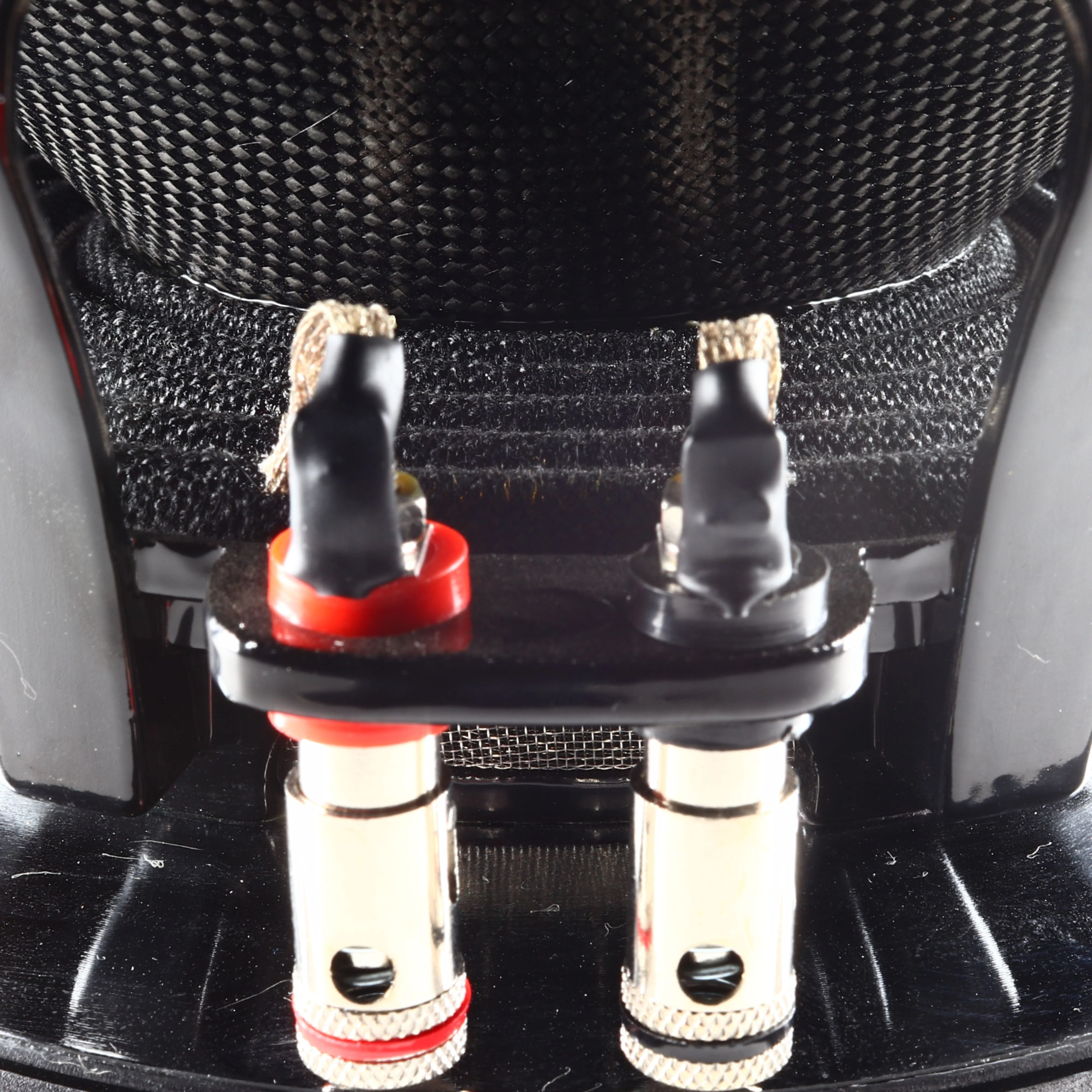

• Spring Loaded Terminals

Specifications:

• RE (Ohms): 6.00


• FS (Hz): 90.592


• VAS (L): 5.861


• Qes: 0.249


• Qms: 3.539


• Qts: 0.232


• BL (NA): 22.995


• Mms (Grams): 38.524


• Cms (uM/N): 80.119


• Sens (dB @ 1w/1m): 94.3dB
